It is mainly divided into two categories: equilateral stainless steel Angle and unequal stainless steel Angle, of which unequal stainless steel Angle can be divided into unequal thickness and unequal thickness of two.
Product Name | Stainless Steel Angle bar |
Size | Thickness:0.3-50mm; Length:2m,3m,5m,6m,9m,10m,12m or customized |
Tolerance | Weight tolarance: -4% TO -6% ;Width +/-0.8mm; Thickness +/-0.4mm; Length:+/-4-12mm |
Equal Angle | Type: 2#-20#; Size: 20-200mm ;Thickness: 3.0-24mm; Weight: 0.597-71.168kg/m |
Unequal | Type: 2.5*1.6-20*12.5# ;Size:25*16-200*125mm; Long Side: 25-200mm |
Angle | Short Side: 16-125mm; Thickness: 3.0-18mm ;Weight: 1.687-43.588kg/m |
Material | 201.202.301.302.304.304L.310S.316.316L.321.347,329,309S.2205.2507.2520.430.410.440.904Lect Or Customized |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
Surface | Mill finish. Galvanized.Forged.Hot Rolled.Cold Drawn.Peeled or customized |
Trade Term | FOB CIF CFR CNF EXW |
Application | Widely used in a variety of architectural and engineering structures,such as beams, bridges, ship; transmission tower, reaction tower; lifting transportation machinery; industrial furnace; container frame, warehouse goods shelves, etc
|

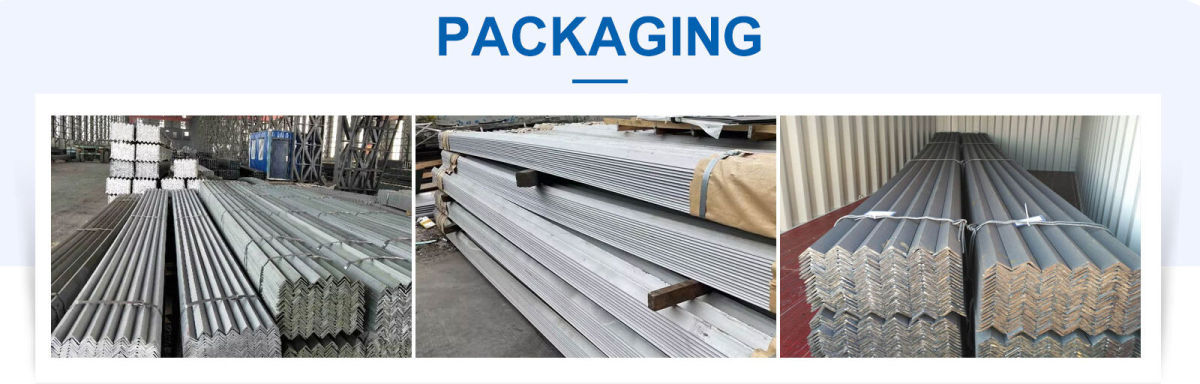

Package | Standard export sea-worthy packing or customized |
Payment | TT/LC |

Chemical composition:
304 | C | Mn | P | S | Si | Cr | Ni | N |
Requirements% | ≤0.07 | ≤2.00 | ≤0.045 | ≤0.030 | ≤0.75 | 17.5–19.5 | 8.0–10.5 | ≤0.10 |
Specification parameter:
Equal angle(A*T) |
Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
40*3 | 1852 | 80*7 | 8.525 | 125*14 | 26.193 |
40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 2949 |
50*5 | 3.77 | 90*7 | 9658 | 140*16 | 35.393 |
50*6 | 4.465 | 90*8 | 10.946 | 160-10 | 24.729 |
60*5 | 452 | 90*10 | 13.476 | 160*12 | 29.391 |
60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
63*5 | 4822 | 100*6 | 9366 | 160*16 | 38.518 |
63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
75*5 | 5.818 | 110*10 | 16.69 | 200-20 | 60.056 |
75*6 | 6.905 | 110*12 | 19.782 |
|
|
Unequal angle(A*T) |
Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) |
25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 141 |
45*28*3 | 1.687 | 80*50% | 7.745 | 140*90*10 | 17.475 |
45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
50*32*4 | 2.494 | 90*56*8 | 8779 | 160*100*10 | 19872 |
56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
56*36*4 | 2.818 | 100*63*8 | 9878 | 160*100*16 | 30.853 |
56*396*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22273 |
63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
63*40*5 | 3.92 | 100*80*7 | 9656 | 180*110*14 | 30589 |
63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
70*45*7 | 6011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
75*50*6 | 5.699 | 110*70*10 | 13.476 |
|
|
