PRODUCTS

The lead ingot is rectangular in shape with protruding ears at both ends. It is blue-white metal and relatively soft. Density 11.34g/cm3, melting point 327℃
1. There must be no slag, particulate oxygen, inclusions and external pollution on the surface of lead ingots.
2. The lead ingot must not have cold insulation or flash burrs larger than 10mm (trimming is allowed).
-+
Add to Basket

Previous:Lead wire

PRODUCT  DETAILS

Products Overview

lead ingot

♦ Lead ingots produced to ASTM B29-03 specifications for refined pure at 99.97% and pure lead at 99.94% .

♦ Lead ingots that tweak the standard purity specifications to include very low sulfur at controlled levels.

Purity specifications like those listed above would be used in radiation shielding applications for interlocking lead bricks or nuclear quality pours as well as extrusion lines that require a very consistent lead quality to achieve reliable repeat values.

♦ G2 ballast grade lead ingots that would satisfy the requirements of the end user requiring a “heavy metal” lead ballast weight solution.

Material is produced to a 96.5% minimum purity lead level and may contain 1.5-3% Antimony (Sb) and .1-3.5% Tin (Sn).


Products Images

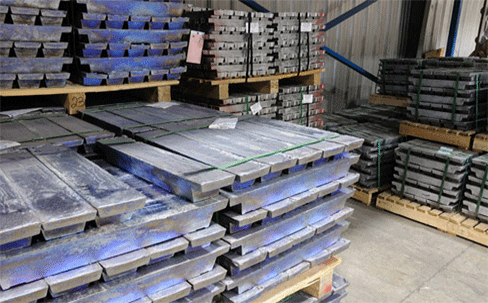

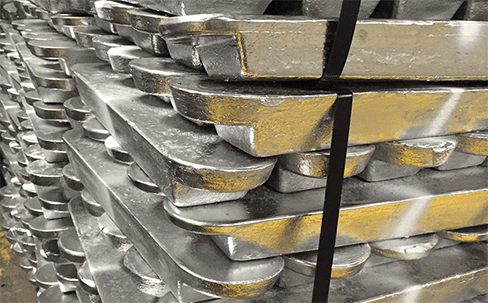

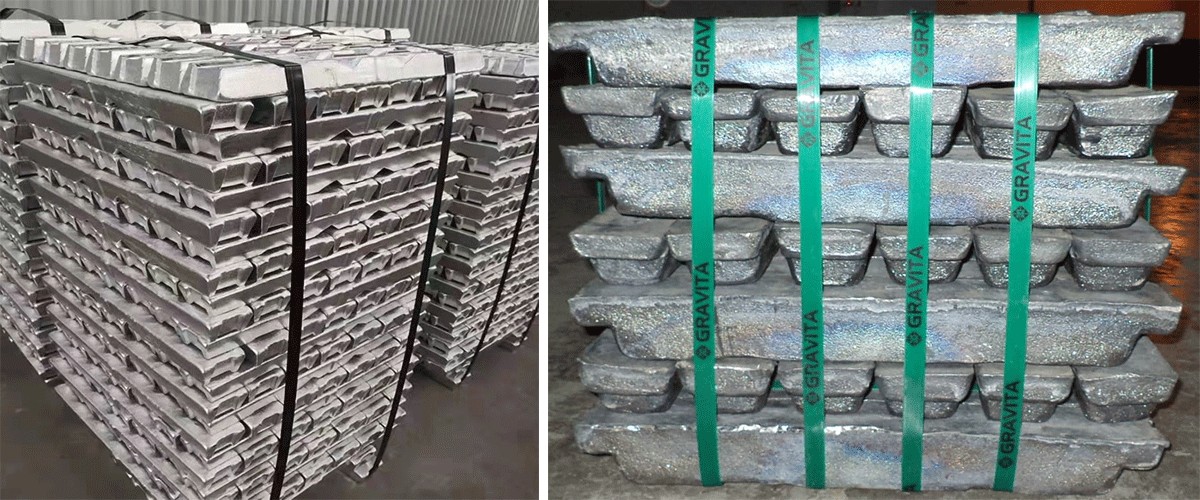

lead ingot

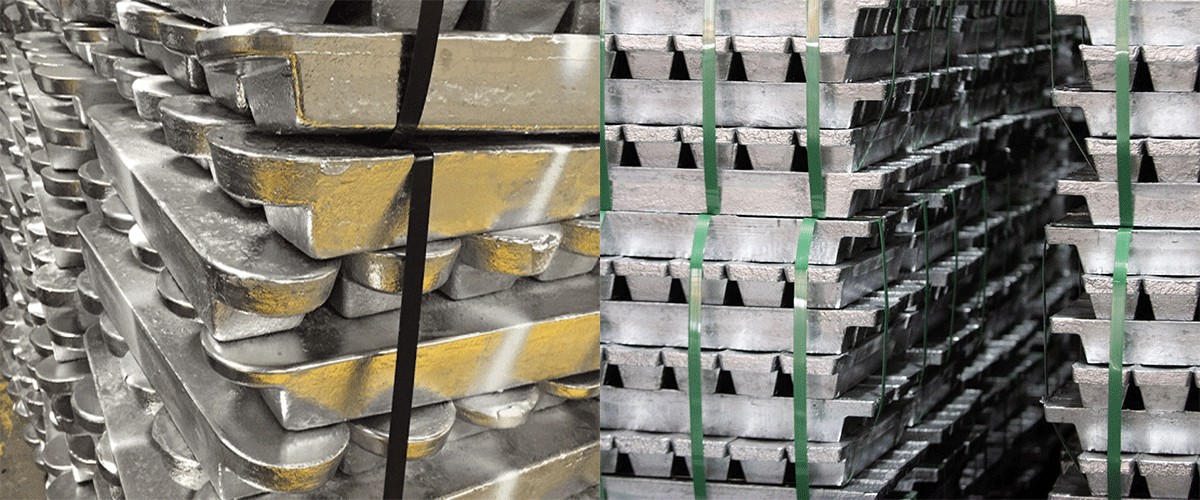

lead ingot


Products Parameter

Products nameLead ingot
Standard
ASTM B29-03,BS EN 12659:1999,GB/T 469 -2005
Content
Pb ≥ 99.99 %
ColorBluish
Density
11.34 g/cm 2
Weight35kgs/lump,55kgs/lump
Dimension21"×4"×2.5"
PackageStandard sea-worthy package,fixed by belt per ton
ShapeRectangular Lump
SampleAvailable for free
ApplicationMainly used in manufacturing batteries, coatings, warheads, welding materials, chemical lead salts, cable sheaths, bearing materials, caulking materials, babbitt alloys and X-ray protective materials, etc.

Application

Pb99.940 Lead Ingots is a sheet rolled with metal lead, with a specific gravity of 11.345 g/cm.

Lead has a good absorption rate to X-rays and rays and is widely used as a protective material for X-ray machines and atomic energy devices.

In addition, it has rapid and strong corrosion resistance, and also has the characteristics of acid and alkali resistance. It is widely used in acid-resistant environment, medical radiation protection, X-ray protection in CT room, sound insulation and other aspects. It is a cheap radiation protection material.

The lead plate has good anti-radiation effect in the range of 100 kV to 300 kV, and is also suitable for comprehensive protection of any medical treatment, technology and research.
